Python module


Key Investigators

  • Mario Negri Institute: Luca Antiga
  • UCSD: Bryan Smith

Objective

Python has a great potential in Slicer3. Its uses span:

  • Python command line modules (advantages: easy to write, access to Python libraries, don't need a compiler to write new modules)
  • matplotlib and scipy Python modules (they provide a matlab-like processing environment for images directly within Slicer).
  • Python as Slicer's scripting language (for automating tasks, programmatically access modules - this is Dan's new baby! - enabling staged processing)

Approach, Plan

In the project week, we plan to

  • solve building issues, check stability on different platforms
  • threading issues: modifying the MRML scene from Python command line modules in a thread-safe way
  • stabilize calling modules from Python, write example on staged processing
  • provide a Python equivalent to ScriptedModules
  • define what aspects will end up in the next release
  • propose a working set of Python command line modules (interact with Sonia's breakout session on Tuesday?) to be included in the next release
  • write documentation on how to write Python command line modules

Progress

January 2008 Project Week

  • Matplotlib with a Cairo backend is almost there
  • Python command line modules now work correctly (handling arguments multiple=true has been fixed)
  • A set of working Python command line modules has been committed

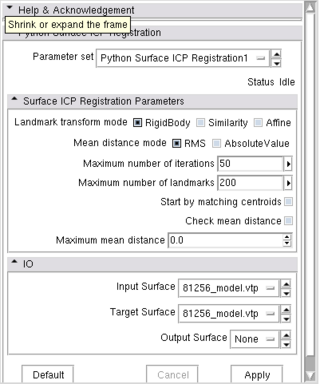

  • Scripted modules have been extended to Python, and a sample scripted module has been written
  • Meta-modules are now possible; the first meta-modules will be written soon

June 2007 Project Week

These are the results of the MIT project week (largely Dan's work)

  • Implemented Python Modules
    • Add search for Python in ModuleFactory
      • Can put .py files in the CommandLine Module path
    • Execute Python within Slicer
      • Full access to VTK, vtkTEEM, vtkITK, etc.
    • If the Python module provides an XML description, and an Execute function, will be added as a CommandLine Module
  • ToDo
    • Check-in (needs USE_PYTHON guards)
    • Progress reporting
    • Simplify the API
    • Automate command line parsing using XML description

Later on, after the meeting

  • command line parsing has been completed
  • Python scripting and Python modules have been made independent of Numpy
  • Python command line modules are now run in the main thread (allows interaction with MRML scene)
  • a set of Python command line modules has been written
