CMR Toolkit Threshold Model

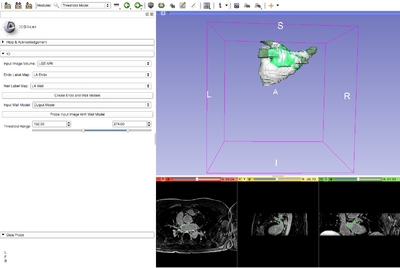

Thresholded Wall Model
Changing the Threshold

Authors, Collaborators & Contact

  • CARMA Center, University of Utah: Salma Bengali, Alan Morris, Josh Cates, Rob MacLeod

General Information

Module Type & Category

Type: CLI

Category: Cardiac MRI Toolkit

Module Description

This module can be used to threshold a model of the left atrium. It requires an input LGE-MRI image, an endocardium segmentation and a wall segmentation. The wall model can be thresholded in order to visualize regions of scar.

Usage

Examples, Use Cases & Tutorials

  • This module is meant to be used to threshold the wall model produced from the wall segmentation of the left atrium.

Quick Tour of Features and Use

The following are the inputs and outputs

  • Input Image Volume : Select an LGE-MRI image
  • Endo Label Map : Select the endo segmentation
  • Wall Label Map : Select the wall segmentation
  • Input Wall Model : Select the wall model created by the module

Development

Source Code & Documentation

The source code for this module can be found at the GitHub repository.
