Project Week 25/Segmentation for improving image registration of preoperative MRI with intraoperative ultrasound images for neuro-navigation

From NAMIC
Jump to: navigation, search
Home < Project Week 25 < Segmentation for improving image registration of preoperative MRI with intraoperative ultrasound images for neuro-navigation

Back to Projects List

Key Investigators

Project Description

Objective Approach and Plan Progress and Next Steps
  • Segmented multiple anatomical structures/landmarks in both MRI and Ultrasound (US) images, using machine learning algorithms (applicability of Deep Learning algorithms is currently tested, DL for US-images, data augmentation...).
  • The next step would be to analyze the improvement of registration quality with different segmentations/generated landmarks in order to adapt the segmentation algorithms.
  • (Kuka LWR project, Shery) Using advanced segmentation and registration features for iterative robot control. The respective status of the Kuka LWR iiwa (position, configuration) is simulated and visualized as 3-D model in MeVisLab. Medical data sets including target pose (position and path towards it) can be send and received via the OpenIGTLink network protocol as well.
  • Starting from multi-modal image segmentation in preopertive MRI and intraoperative Ultrasound images,

it would be to discuss in which "form" one or multiple segmented structures should influence the registration result.

  • Get data from public data archive of US and MRI images and segment anatomical structures in both modalities.
  • Discussion: Benefit of additional information of multiple segmentations for registration.
  • Working with the public RESECT dataset [1]
  • Using segmentations to register MRI with US (algorithms are not overfitted on previously used data)
  • Locally refine with image based registration
  • Plastimatch B-spline deformable registration module works well for image based registration [2]

TODO:

  • Implement LC2 norm to improve image based registration between US and MRI (Wein, Wolfgang, et al. "Global registration of ultrasound to mri using the LC2 metric for enabling neurosurgical guidance." International Conference on Medical Image Computing and Computer-Assisted Intervention. Springer, Berlin, Heidelberg, 2013.)
  • Create module to load RESECT dataset including landmarks for ground truth

(Kuka LWR project, Shery)

  • 1.) Plus setup config file adapted to communicate via OpenIGTLink module in MeVisLab.
  • 2.) Further development of project controlling the Kuka lwr: New marker-based point selection, that could be used to simulate needle placement in MRI images.

Illustrations


Using segmented structures as guiding frame for multi-modal image registration:

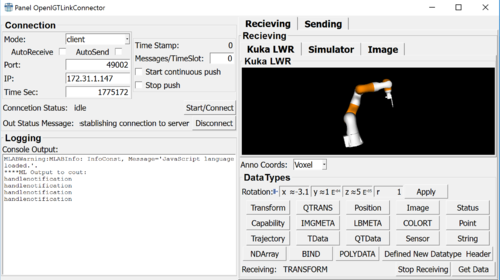

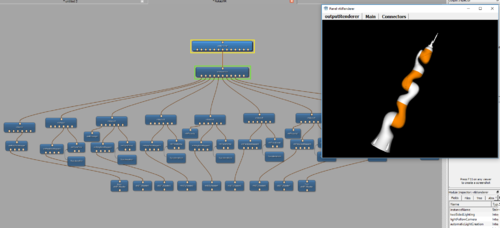

LWR Robot simulation in MeVisLab:

Picture 2016-12-19 13 55 31.png Picture 2017-06-26 11 04 59.png

Background and References

In glioma surgery neuronavigation systems assist in determining the tumor's location and estimating its extent. However, the intraoperative situation diverges seriously from the preoperative situation in the MRI scan displayed on the navigation system. The movement of brain tissue during surgery, i.e., caused by brainshift and tissue removal, must be considered mentally by the surgeon. A task that gets more challenging in later phases of the tumor resection.

Besides, it is an exhaustive issue and the shift of cerebral structures must be expected being non-uniform and that it implies a deformation of the image data. This makes it especially hard to mentally predict and model.
