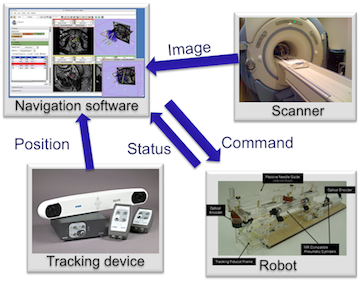

OpenIGTLink provides a standardized mechanism for communications among computers and devices in operating rooms (OR) for wide variety of image-guided therapy (IGT) applications. Examples of such applications include:

• Stereotactic surgical guidance using optical position sensor and medical image visualization software.
• Intraoperative image guidance using real-time MRI and medical image visualization software
• Robot-assisted intervention using robotic device and surgical planning software

See Applications section below for a list of research projects using OpenIGTLink.

OpenIGTLink is a set of digital messaging formats and rules (protocol) used for data exchange on a local area network (LAN). The specification of OpenIGTLink and its reference implementation, the OpenIGTLink Library, are available free of charge for any purpose including commercial use. An OpenIGTLink interface is available in popular medical image processing and visualization software 3D Slicer.

Recent updates.

Protocol

---

OpenIGTLink Version 2

• Version 2 Protocol Page

Extended Protocols

• List of site- and project-specific extended protocols

Downloads

---

Reference Library

• The OpenIGTLink Library (C/C++) (Tutorial)
• OpenIGTLink Interface for Matlab / Octave (Experimental)

Software

• Interface for 3D Slicer
• Simulator programs

Tutorials/Events

---

• Tutorial Materials
  • Tutorials on image-guided therapy (IGT) using Slicer 3 and OpenIGTLink are available at IGT:ToolKit
  • Interface for Image-Guided Surgery Toolkit (IGSTK)
  • Tutorial on 3D Slicer and Tracker simulator in 3D Slicer OpenIGTLink IF Documentation page.
  • How to use the new features in Version 2 in 3D Slicer.

• Meetings / Workshops
  • OpenIGTLink Meetings and Workshops

Applications

---

OpenIGTLink has been used in a number of research projects. Here are some examples:

•

  Integration of transperineal prostate robot and navigation software (BRP -- Brigham and Women's Hospital/Johns Hopkins University/Queen's University/Acoustic MedSystems)

•

  Prototype integration of a neurosurgical robot and 3D Slicer v3 using OpenIGTLink (Hideo Fujimoto, Nagoya Institute of Technology, Japan)

•

  Screenshot of tracker tool visualization on 3D Slicer (Brigham and Women's Hospital)

•

  Integration of transperineal prostate robot (BRP -- Brigham and Women's Hospital/Johns Hopkins University/Queen's University/Acoustic MedSystems)

Please see the list of hardware that supports the OpenIGTLink Protocol.

References

---

• Studies using OpenIGTLink
  • Tokuda J, Fischer GS, Papademetris X, Yaniv Z, Ibáñez L, Cheng P, Liu H, Blevins J, Arata J, Golby AJ, Kapur T, Pieper S, Burdette EC, Fichtinger G, Tempany CM, Hata N. OpenIGTLink: an open network protocol for image-guided therapy environment. Int J Med Robot. 2009 Dec;5(4):423-34.
  • Arata J, Kozuka H, Kim HW, Takesue N, Vladimirov B, Sakaguchi M, Tokuda J, Hata N, Chinzei K, Fujimoto H. Open core control software for surgical robots. Int J Comput Assist Radiol Surg. 2010 May;5(3):211-20. Epub 2009 Jul 28.
  • Tokuda J, Fischer GS, DiMaio SP, Gobbi DG, Csoma C, Mewes PW, Fichtinger G, Tempany CM, Hata N. Integrated navigation and control software system for MRI-guided robotic prostate interventions. Comput Med Imaging Graph. 2010 Jan;34(1):3-8. Epub 2009 Aug 20.
  • Elhawary H, Liu H, Patel P, Norton I, Rigolo L, Papademetris X, Hata N, Golby AJ. Intraoperative real-time querying of white matter tracts during frameless stereotactic neuronavigation. Neurosurgery. 2011 Feb;68(2):506-16.
  • Egger J, Tokuda J, Chauvin L, Freisleben B, Nimsky C, Kapur T, Wells W. Integration of the OpenIGTLink Network Protocol for image-guided therapy with the medical platform MeVisLab, Int J Med Robot Article first published online: 28 FEB 2012 DOI: 10.1002/rcs.1415
